AI 3000W Server Power Supply

80 Plus Platinum ATX3.1 3000W PC power supply for AI Server


Product model:	AI-3000W
Product type:	Computer power supply for AI Workstation
Rated power:	3000W
Fan specifications:	14014025mm
PFC:	Active PFC
Input voltage:	200~240V
Topology scheme:	Full - bridge LLC Resonant
Wide Voltage Range support:	Yes
Thermal control support:	Yes
Product size:	16015086mm
Warranty:	10 years

Scan for WhatsApp inquiries.
Customization Capabilities of Yijian

Need help? Please contact us to serve you!

+86-18873299558

[email protected]

Description

Descriptions of AI3000W:

BUILT FOR AI AND HIGH-POWER APPLICATIONS

The AI3000 is a 3000W 80 Plus Platinum power supply with a conversion efficiency exceeding 94%. Compliant with Intel ATX3.1 standards, it features a native PCle 5.1 interface and offers excellent compatibility in a compact 175mm length. Capable of supporting four 50-series graphics cards simultaneously, it utilizes a full-bridge LLC + DC-to-DC + synchronous rectification (SR) design, delivering up to 166A on the 12V rail.

Applications of AI3000W:

blockchain hardware equipment, small and medium-sized servers, AI bionic servers, ultra-performance PC computers and computing servers.

Features:

-Supports 4pcs 50 series Gpus

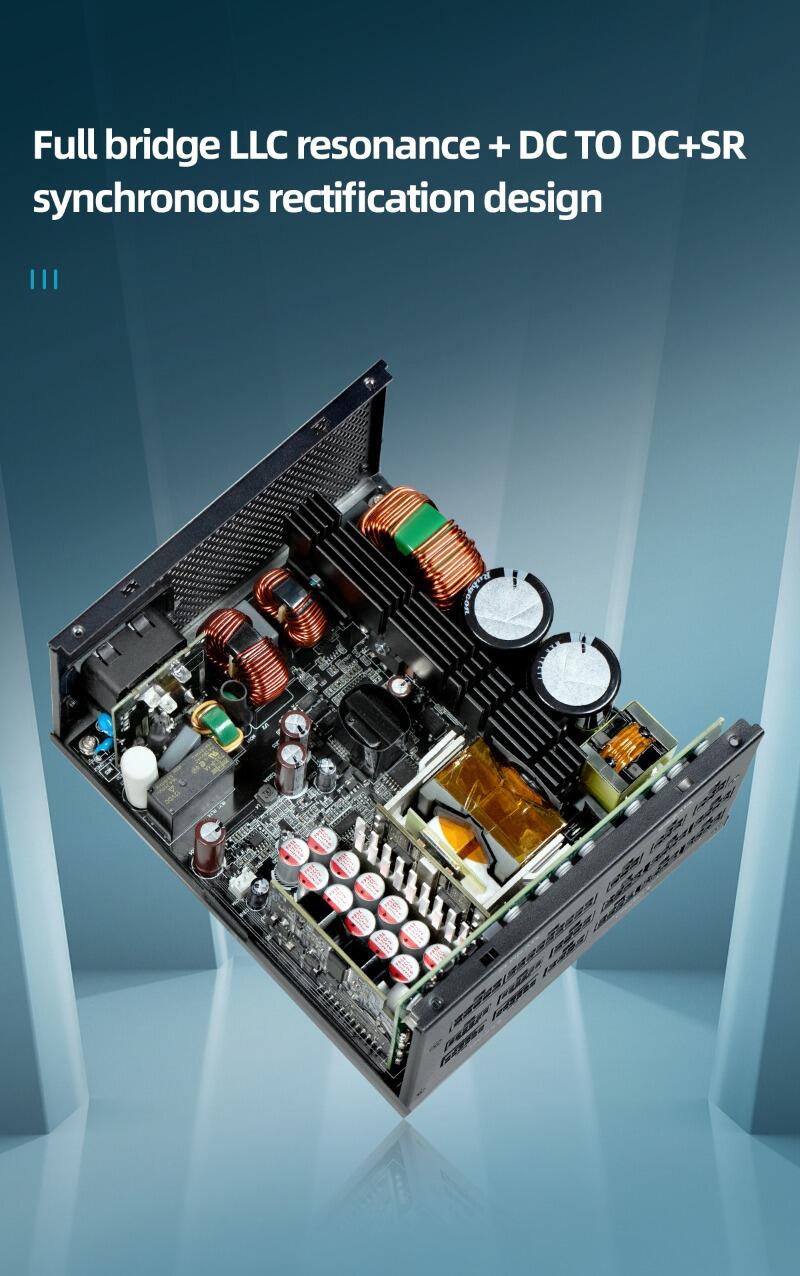

-Full bridge LLc resonance + DC TO DC+SR Synchronous rectification design

-50 Series Graphics Card Power Interface

-Native ATX3.1, compatible with 50 series graphics cards

-12V High-Current Output

-Featuring a single -rail 12V high -current design with an output current up to 250A

-Outstanding design: high power, high efficiency, high density, high security

-MULTIPLE PROTECTIONS: OCP OVP UVP OPP SCP OTP SIP NLP

AC Input	200-240VAC 20A 50/60HZ
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output A	25A	25A	250A	0.5A	3.0A
Combined W	125W		3000W	6W	15W
Output Power P cont	3000W

power supply for computer 80plus platinum

power supply source pc power supply

Customization Capabilities of Yijian

We main provide OEM & ODM Services. You can customize products according to your own requirements including:

Customizable chassis appearance style and color, Customizable cables and interfaces, Customizable power and conversion efficiency, Customizable capacitors, fans, and other internal components, Customizable design labels or packaging.

CUSTOMIZED PROCESS:
-Contact for confirming all details
-Submit the sample order to R&D team
-R&D team make samples
-Test samples (samples pass testing)
-Send samples to customer
-Customer confirms the samples
-Mass production
-Final QC

OEM SERVIES power supply unit yijian factory.png
