80Plus Gold GN-850W

80Plus Gold Full-modular ATX PC Power Supply for Desktop Computer

Product model:	GN-850W, GN-1000W, GN-1200W, GN-1300W
Product type:	Gaming PC power supply
Rated power:	850W, 1000W, 1200W, 1300W
Fan specifications:	12012025mm
PFC:	Active PFC
Input voltage:	100~240V

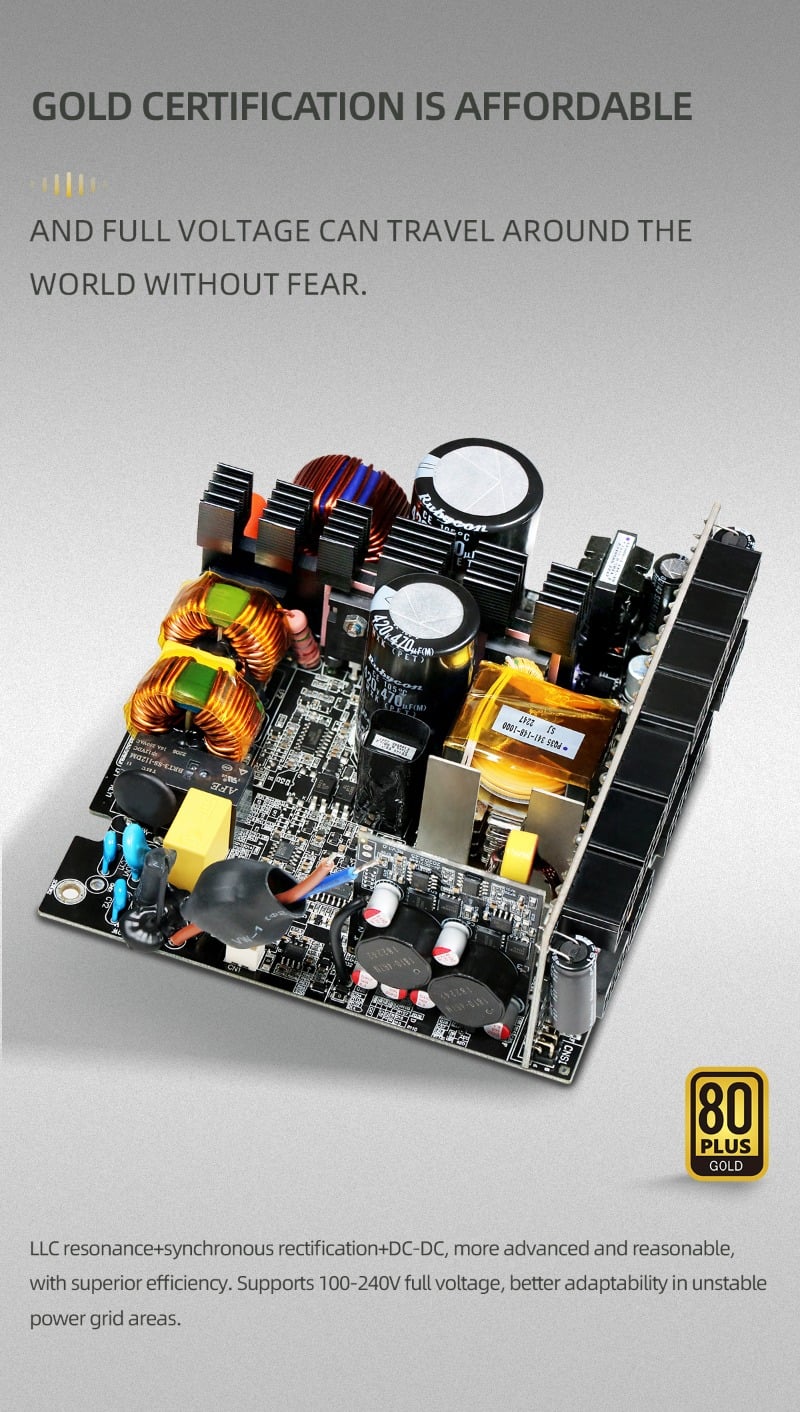

Topology scheme:	Half bridge resonance
Supports Wide Width:	Supports
Supports temperature control:	Supports

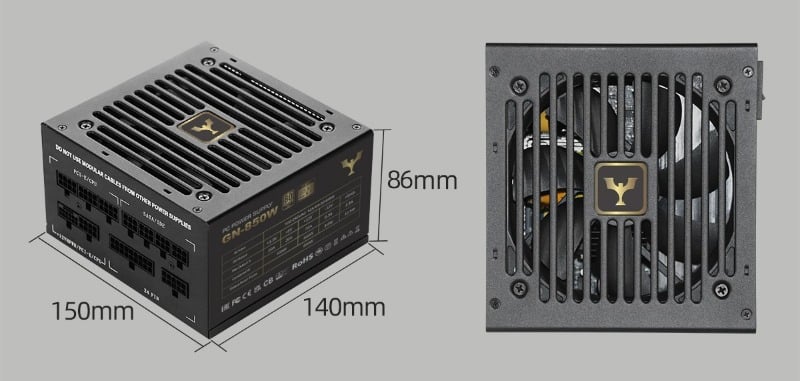

Product size:	14015086mm
Warranty:	7 years

Scan for WhatsApp inquiries.
Customization Capabilities of Yijian

Need help? Please contact us to serve you!

+86-18873299558

[email protected]

Description

Description:

This 80Plus Gold GN-850W Full-modular ATX PC Power Supply is designed for desktop and server use, featuring an efficiency of 90%, 24pin interface, and wide input voltage range (100-240V). It is 100% tested, reliable, and comes with a 7-year warranty. Certified by UL, EAC, FCC, CE, CCC, RoHS and so on, it ensures compliance with international safety standards, providing market access and regulatory assurance for global buyers.

Features:

-80Plus Gold-Certified:

Rated for up to 90% efficiency, resulting in lower power consumption, less noise, and cooler temperatures.

-Fully Modular:

Reliable and efficient low-noise power supply with fully modular cabling, so you only have to connect the cables your system needs.

-ATX 3.1 Compliant:

Compliant with the ATX 3.1 power standard from Intel, supporting PCI E5.1 and resisting transient power spikes.

-Full Voltage

-High Quality Capacitors

105°C Japanese Main Capacitors

-Native 12V-2x6 Connector:

Ensures compatibility with the latest graphics cards with a direct GPU to PSU connection – no adapter necessary.

-Low Noise Fan:

Silent running 120mm Intelligent Temperature Control FDB cooling fan

-Multiple Protection:

OCP OVP UVP OPP SCP OTP

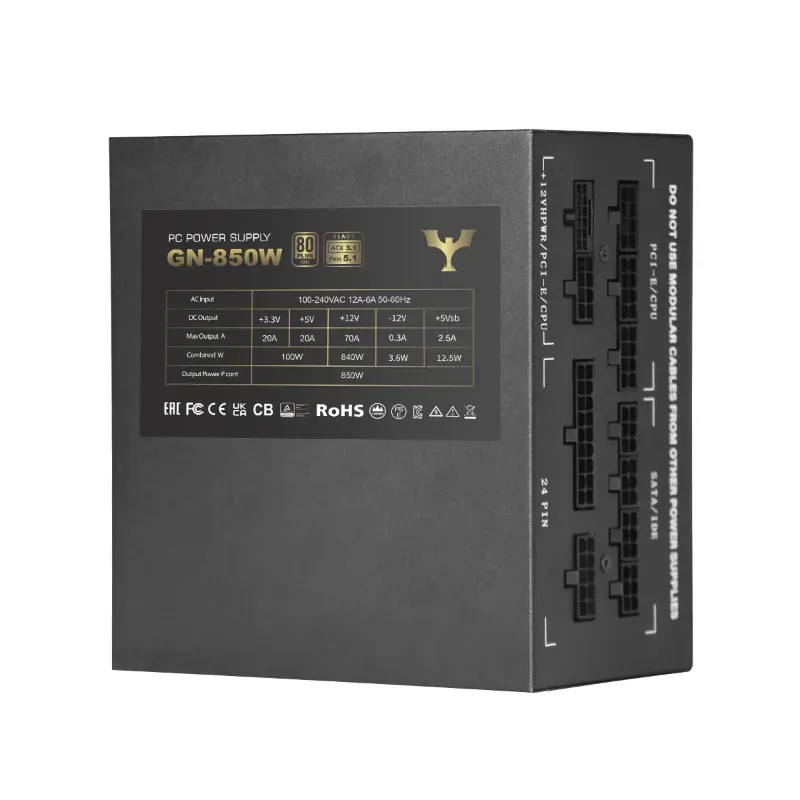

AC Input	100-240VAC 12A-6A 50-60HZ
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output A	20A	20A	70A	0.3A	2.5A
Combined W	100W		840W	3.6W	12.5W
Output Power P cont	850W

PC Power Supply for Computer ATX 80Plus Gold Full-modular 850W YIJIAN.jpg

PC Power Supply for Computer ATX 80Plus Gold Full-modular 850W OEM ODM.jpg

OEM YIJIAN PC Power Supply for Computer ATX 80Plus Gold Full-modular 850W.jpg

Customization Capabilities of Yijian

We main provide OEM & ODM Services. You can customize products according to your own requirements including:

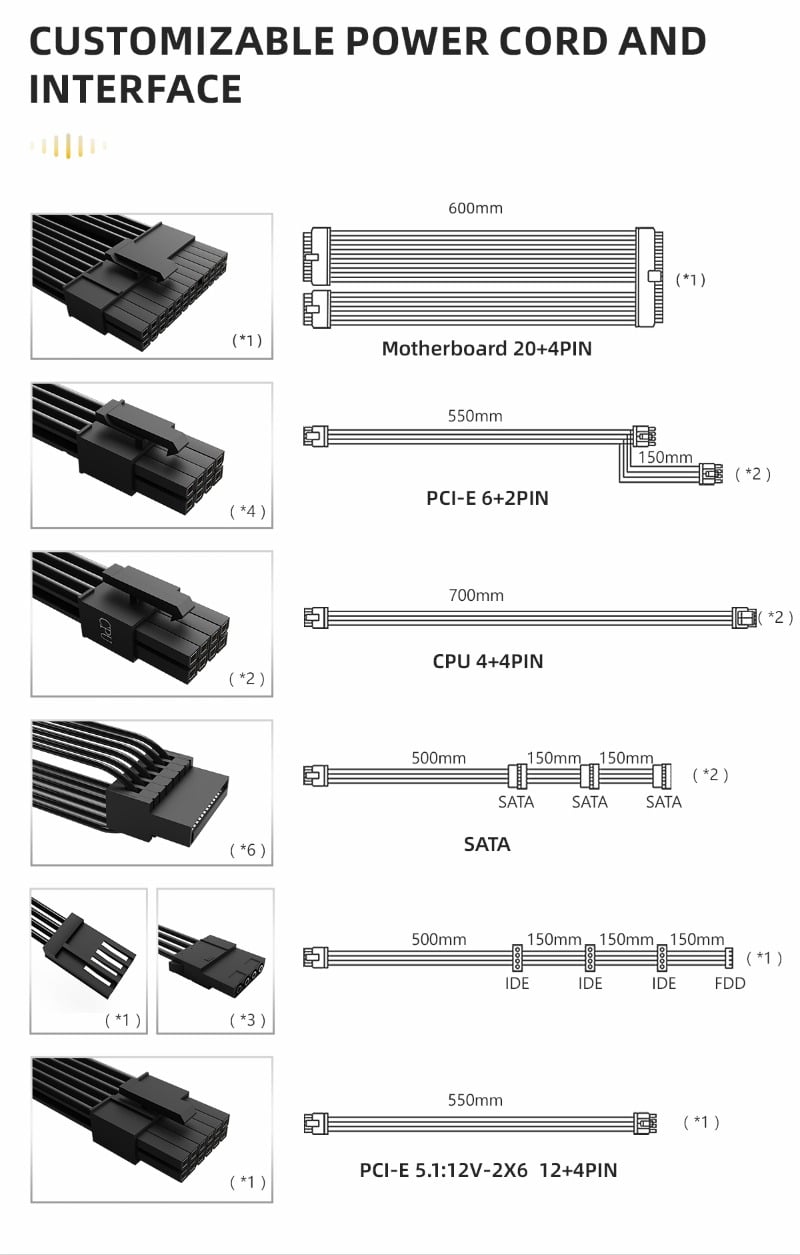

Customizable chassis appearance style and color, Customizable cables and interfaces, Customizable power and conversion efficiency, Customizable capacitors, fans, and other internal components, Customizable design labels or packaging.

CUSTOMIZED PROCESS:
-Contact for confirming all details
-Submit the sample order to R&D team
-R&D team make samples
-Test samples (samples pass testing)
-Send samples to customer
-Customer confirms the samples
-Mass production
-Final QC

OEM SERVIES power supply unit yijian factory.png
